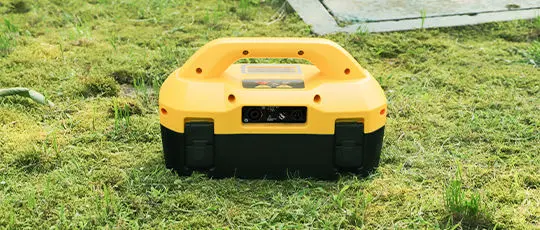

Loc3 Series 25-Watt Transmitter

The powerful 25-watt transmitter is the go-to transmitter for cable fault locating, finding holidays on coated pipes, problematic deep-buried lines, and long-distance pipe and cable locating. The Loc3-25Tx is also well suited for applications for cathodic protected longline pipelines and gas distribution in city areas needing a low-frequency high output transmitter.

The Loc3-25Tx transmitter has selectable direct connection frequencies from 32Hz to 9.82kHz and signal clamp frequencies from 8kHz to 9.82kHz. The two-inch by one-inch dot matrix display with LED backlight shows the user output current, volts, frequency and user feedback warnings.

The Loc3-25Tx is packaged in a rugged, ergonomic IP54 housing and is lightweight at only 7.05lbs (3.19kg). The transmitter provides consistent current output up to 4 Amps peak. The transmitter comes in a soft carry bag with a storage pocket for everyday accessories and can be operated while inside the carry bag.

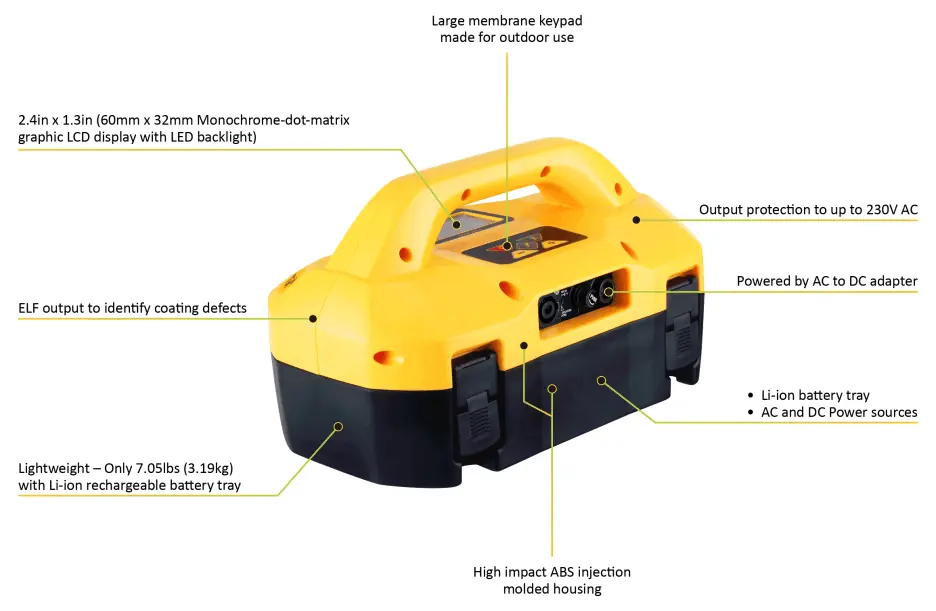

Loc3-25Tx Transmitter Overview 🔍


* 4 Amp peak current output
* 130 Volts peak output
* Light and portable for everyday use
* ELF and Low frequencies available minimum distortion
* Signal clamp compatibility

Mobirise

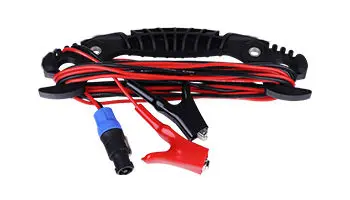

Direct Connection Lead with Standard Clips, Loc3-25Tx

Mobirise
12 Volt DC Power Lead

Mobirise

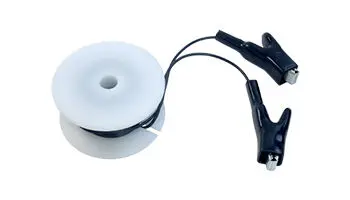

Ground Extension Spool

Mobirise

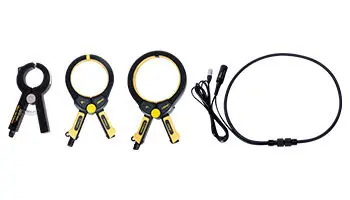

Transmitter Signal Clamps

Mobirise

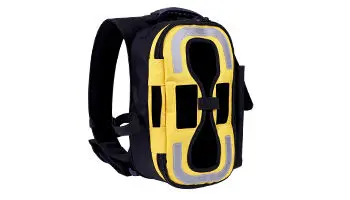

New Loc3 Series Backpack

Mobirise

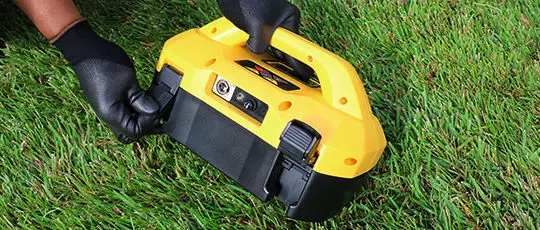

Loc3 Series 5-Watt Broadband Transmitter

The 5-Watt broadband transmitter has selectable induction and direct connection frequencies from 98Hz to 200kHz, SD mode (Signal Direction), fault find and true resistance measurement up to 1 Mohm. The two inch by one-inch dot matrix display with LED backlight shows output current, connection type, volts, resistance, frequency, volume, battery condition and high voltage warnings.

The optional Transmitter Link (Tx-Link) installed in the receiver and transmitter, remote operation of the transmitter from the receiver is possible. The range of the radio transmitter link depends on having a clear “line of sight” between receiver and transmitter but is typically around 300m /985 ft. Signal Direction (SD) mode feature verifies if the line being located is the target that the transmitter is connected to.

When a transmitter is connected to a target line, the signal travels along it and finds the easiest way to travel back, usually via the ground and ground stake. However, very often the signal will travel back along adjacent utilities which offer an easier route. As a result, there can be multiple signals radiating from utilities in the area making it difficult to identify the target line. These return signals are typically traveling in the opposite direction than the applied signal. The Signal Direction feature identifies which direction the signal is flowing and hence the target line.

Packaged in a lightweight, rugged, ergonomic IP54 housing, the transmitter provides consistent current output in direct connect, clamp or induction modes and protection against incoming voltages up to 240V.

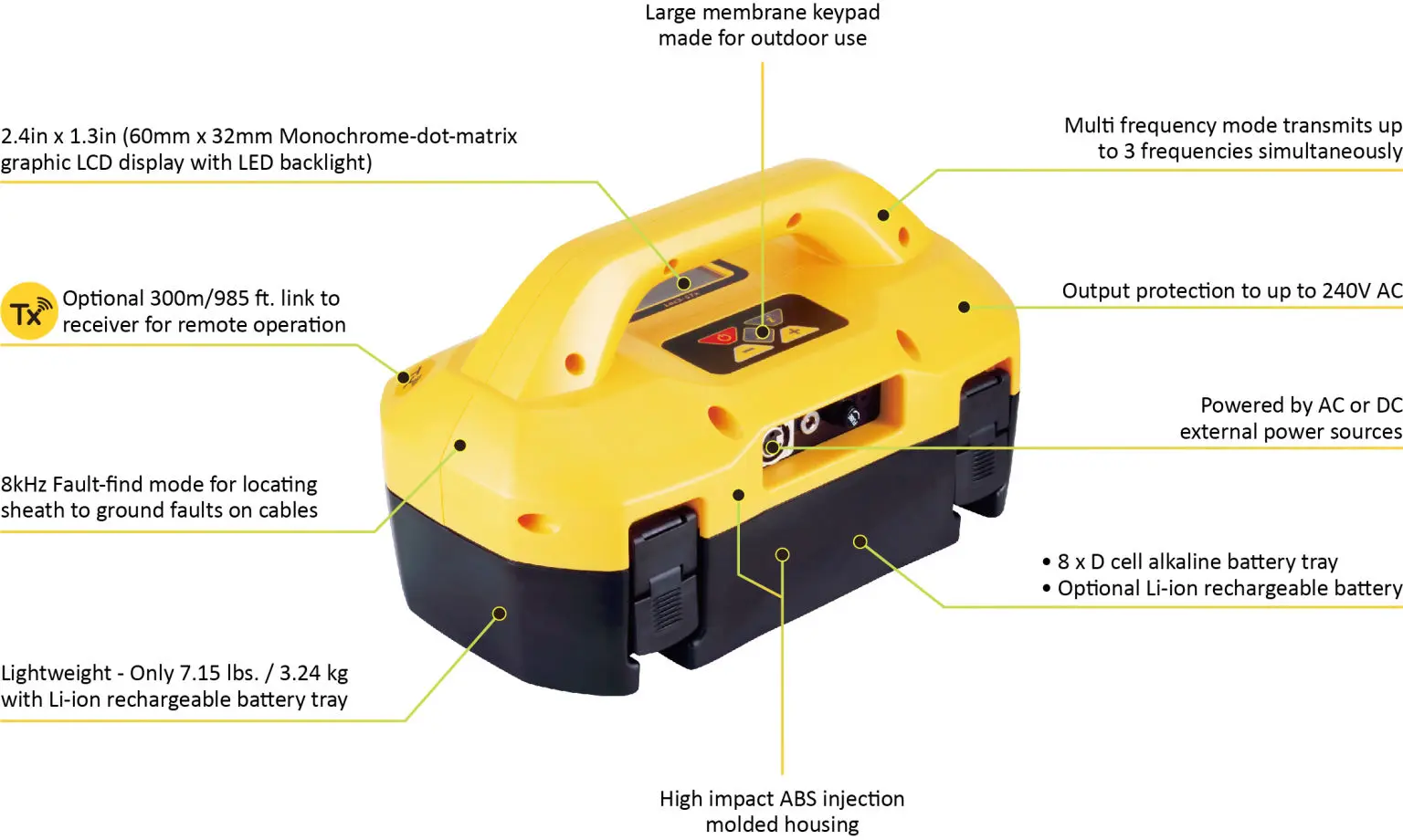

Loc3-5Tx Trannsmitter Overview 🔍


* Optional transmitter-to-receiver radio link
* Lightweight – Only 7.15 lbs. / 3.24 kg with Li-ion battery
* SD mode for positive location in congested areas
* AC/DC external power source
* Built-in AVO meter

Mobirise

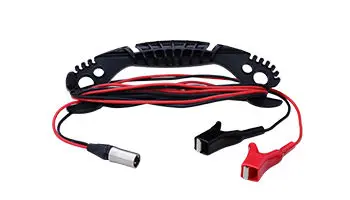

Direct Connection Lead with Standard Clips

Mobirise

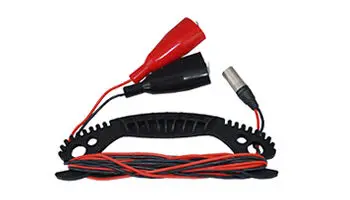

Direct Connection Lead with Heavy Duty Clips

Mobirise
Direct Connection Lead with Telco Clips

Mobirise
12 Volt DC Power Lead

Mobirise
Ground Extension Spool

Mobirise
Transmitter Signal Clamps

Mobirise
New Loc3 Series Backpack

Mobirise

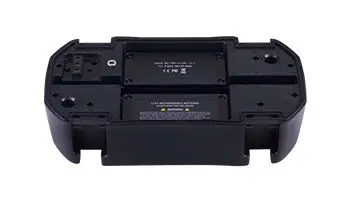

Loc3 Series Transmitters Li-ion Rechargeable Battery

Mobirise

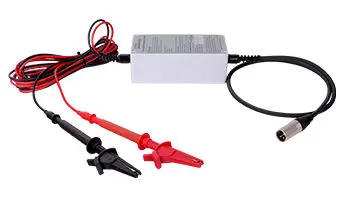

Live Cable Connector

Mobirise

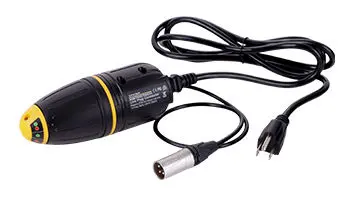

Live Plug Connector

Mobirise

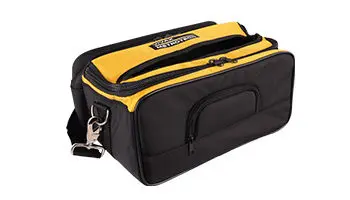

Loc3 Series Transmitters Carry Bag

Mobirise

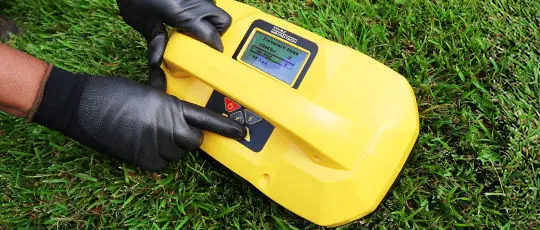

Loc3 Series 10-Watt Broadband Transmitter

The 10-Watt broadband transmitter has selectable induction and direct connection frequencies from 98Hz to 200kHz, SD mode (Signal Direction), fault find and true resistance measurement up to 1 Mohm. The two inch by one-inch dot matrix display with LED backlight shows output current, connection type, volts, resistance, frequency, volume, battery condition and high voltage warnings.

The optional Transmitter Link (Tx-Link) installed in the receiver and transmitter, remote operation of the transmitter from the receiver is possible. The range of the radio transmitter link depends on having a clear “line of sight” between receiver and transmitter but is typically around 300m /985 ft. Signal Direction (SD) mode feature verifies if the line being located is the target that the transmitter is connected to.

When a transmitter is connected to a target line, the signal travels along it and finds the easiest way to travel back, usually via the ground and ground stake. However, very often the signal will travel back along adjacent utilities which offer an easier route. As a result, there can be multiple signals radiating from utilities in the area making it difficult to identify the target line. These return signals are typically traveling in the opposite direction than the applied signal. The Signal Direction feature identifies which direction the signal is flowing and hence the target line.

Packaged in a lightweight, rugged, ergonomic IP54 housing, the transmitter provides consistent current output in direct connect, clamp or induction modes and protection against incoming voltages up to 240V.

10-Watt SIS Transmitter

The Loc3-10SiSTx 10-Watt Transmitter has all the features of the Loc3-10Tx plus it provides full support for the new Signal Select and Distortion Alert line ID features available when used with the vLoc3-5000 receiver.

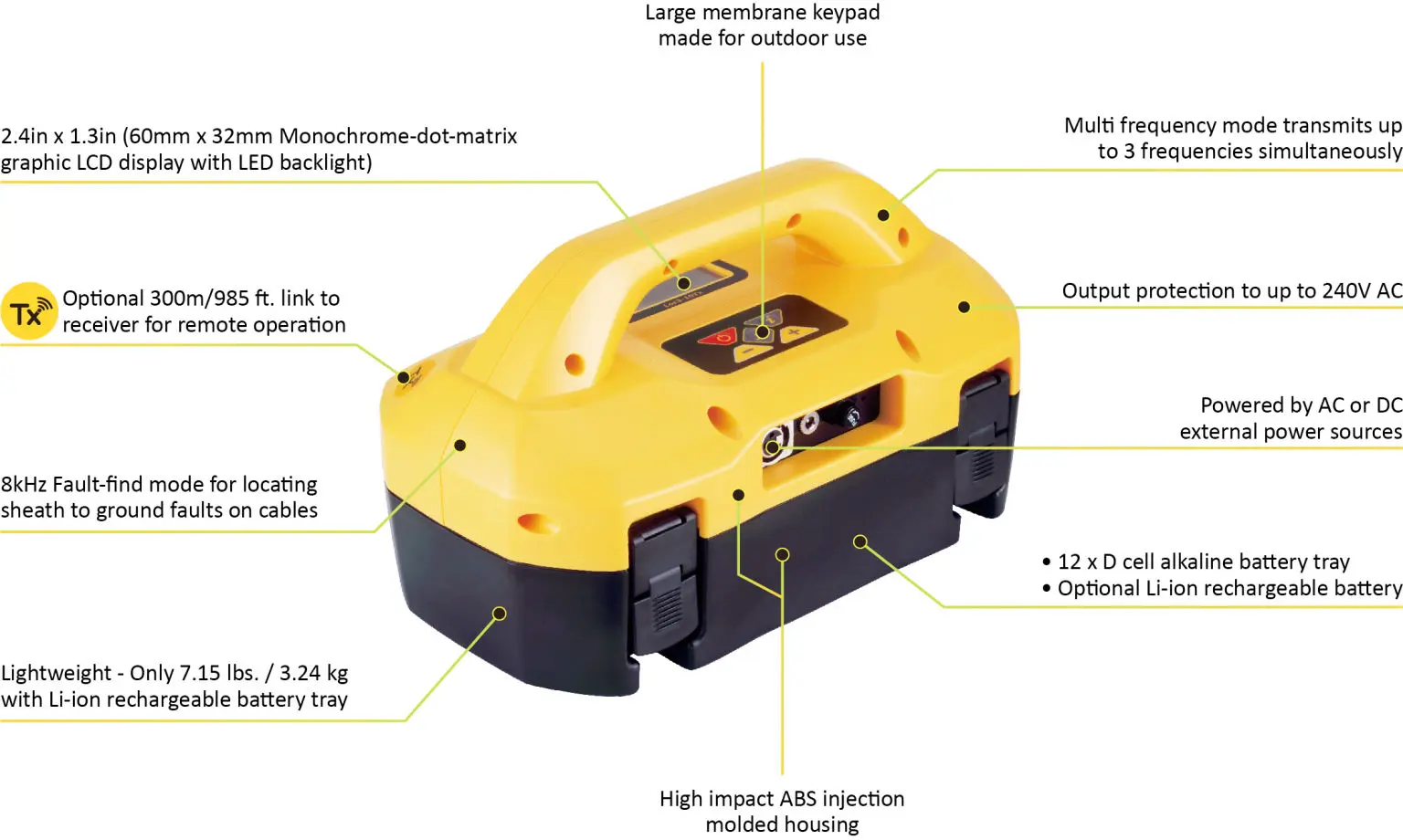

Loc3-10Tx Trannsmitter Overview 🔍


* Optional transmitter-to-receiver radio link
* Lightweight – Only 7.15 lbs. / 3.24 kg with Li-ion battery
* SD mode for positive location in congested areas
* AC/DC external power source
* Built-in AVO meter

Mobirise
Direct Connection Lead with Standard Clips

Mobirise
Direct Connection Lead with Heavy Duty Clips

Mobirise
Direct Connection Lead with Telco Clips

Mobirise
12 Volt DC Power Lead

Mobirise
Ground Extension Spool

Mobirise
Transmitter Signal Clamps

Mobirise
New Loc3 Series Backpack

Mobirise
Loc3 Series Transmitters Li-ion Rechargeable Battery

Mobirise
Live Cable Connector

Mobirise
Live Plug Connector

Mobirise
Loc3 Series Transmitters Carry Bag

Mobirise

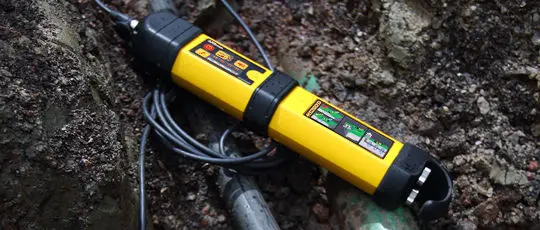

VM-550FF 1-Watt Transmitter

The VM-550FF Transmitter has one induction frequency; three direct connect and a fault-find frequency. The LED indicators on the transmitter show the frequency selected, output level, and battery status. An audio indicator beeps to advise the quality of the connection.

This one-watt transmitter can transmit the locate signal onto the target line three ways. By direct connection, if direct access to the line is available, by induction by simply putting the transmitter in induction mode and placing it over the target line with the induction arrow in line with it or by clamp mode and using the induction clamp to clamp around the target line.

The wide frequency range from the VM-550FF Transmitter makes this a very versatile transmitter. The 83kHz induction frequency makes it ideal for inducing the signal onto large diameter, direct buried iron pipes with bell and gasket connections, and for using the induction clamp around smaller pipes. The lower 512Hz and 8.192kHz are good for direct connection to trace cables, and the 83kHz direct connection is good for high resistance pipes or for use with pushrod camera systems to trace the deployed pushrod. The Fault-find frequency can be used with the VM-510FFL+ to locate cables and find ground to earth faults on them.

Packaged in a lightweight, rugged, ergonomic IP54 housing, the Transmitter provides consistent current output in direct connect, clamp, and induction modes. The Transmitter has protection against incoming voltages up to 260V. The Transmitter comes standard with direct connection leads, ground stake; clip-on carry straps, and D cell batteries.

VM-550FF 1-Watt Transmitter 🔍


* External connection protection to 260VAC
* Lightweight and ergonomic at 2.47 lbs./1.2kg
* Optional Li-ion battery pack
* High impact ABS construction
* Small, lightweight profile

Mobirise
Direct Connection Lead with Heavy Duty Clips


Direct Connection Lead with Telco Clips


12 Volt DC Power Lead


Ground Extension Spool


Transmitter Signal Clamps

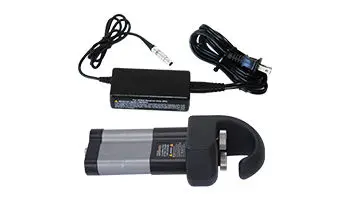

Rechargeable Transmitter Battery


Live Cable Connector


Live Plug Connector

Mobirise

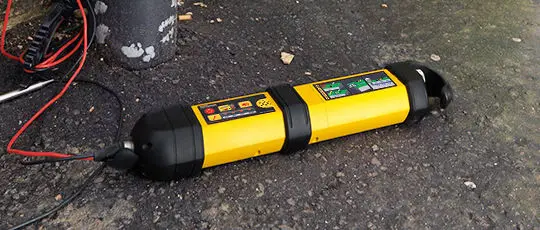

VM-560FF 1-Watt Transmitter

The VM-560FF Transmitter has one induction frequency; three direct connect and a fault-find frequency. The LED indicators on the transmitter show the frequency selected, output level, and battery status. An audio indicator beeps to advise the quality of the connection.

This one-watt transmitter can transmit the locate signal onto the target line three ways. By direct connection, if direct access to the line is available, by induction by simply putting the transmitter in induction mode and placing it over the target line with the induction arrow in line with it or by clamp mode and using the induction clamp to clamp around the target line.

The wide frequency range from the VM-560FF Transmitter makes this a very versatile transmitter. The 480kHz induction frequency makes it ideal for inducing the signal onto large diameter, direct buried iron pipes with bell and gasket connections, and for using the induction clamp around smaller pipes. The lower 512Hz and 8.192kHz are good for direct connection to trace cables, and the 480kHz direct connection is good for high resistance pipes. The Fault-find frequency can be used with the VM-510FFL+ to locate cables and find ground to earth faults on them.

Packaged in a lightweight, rugged, ergonomic IP54 housing, the Transmitter provides consistent current output in direct connect, clamp, and induction modes. The Transmitter has protection against incoming voltages up to 260V. The Transmitter comes standard with direct connection leads, ground stake; clip-on carry straps, and D cell batteries.

VM-560FF 1-Watt Transmitter 🔍


* External connection protection to 260VAC
* Lightweight and ergonomic at 2.47 lbs./1.2kg
* Optional Li-ion battery pack
* High impact ABS construction
* Small, lightweight profile

Mobirise
Direct Connection Lead with Standard Clips

Mobirise
Direct Connection Lead with Heavy Duty Clips


Direct Connection Lead with Telco Clips


12 Volt DC Power Lead


Ground Extension Spool


Transmitter Signal Clamps


Rechargeable Transmitter Battery


Live Cable Connector


Live Plug Connector

Mobirise

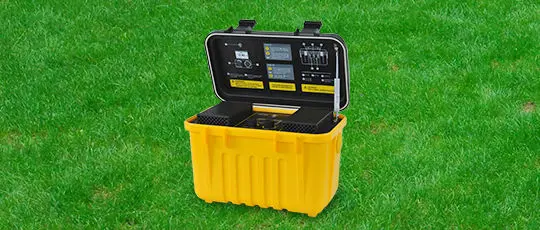

Loc-150Tx DM 150-Watt Transmitter

The Loc-150Tx, 150-Watt DM Transmitter is used primarily with the Defect Mapper (DM) Receiver, however it is also useful for those needing a low frequency, high output transmitter.

Typically, the Loc-150Tx, transmitter (DM transmitter) is used to apply a signal current to the anode bed. The pipeline returns the signal via coating faults back to the transmitter. The Loc-150Tx transmitter is designed to be powered from CP (Cathodic Protection) stations, AC or external batteries, eliminating the need for internal batteries. This transmitter has a direct connection mode to apply the locate frequency onto the conductor. There is no clamp or induction mode.

The Loc-150Tx transmitter has selectable direct connection frequencies from 98Hz to 512Hz (640 Hz in Europe). The two inch by one-inch dot matrix display with LED backlight shows output current, volts, frequency, and over voltage/over temperature/over power warnings.

Two rotary/push control knobs provide access to frequency selection, output level, menu information and active/standby modes. This transmitter is supplied with a direct connection lead, DC input lead and AC mains lead.

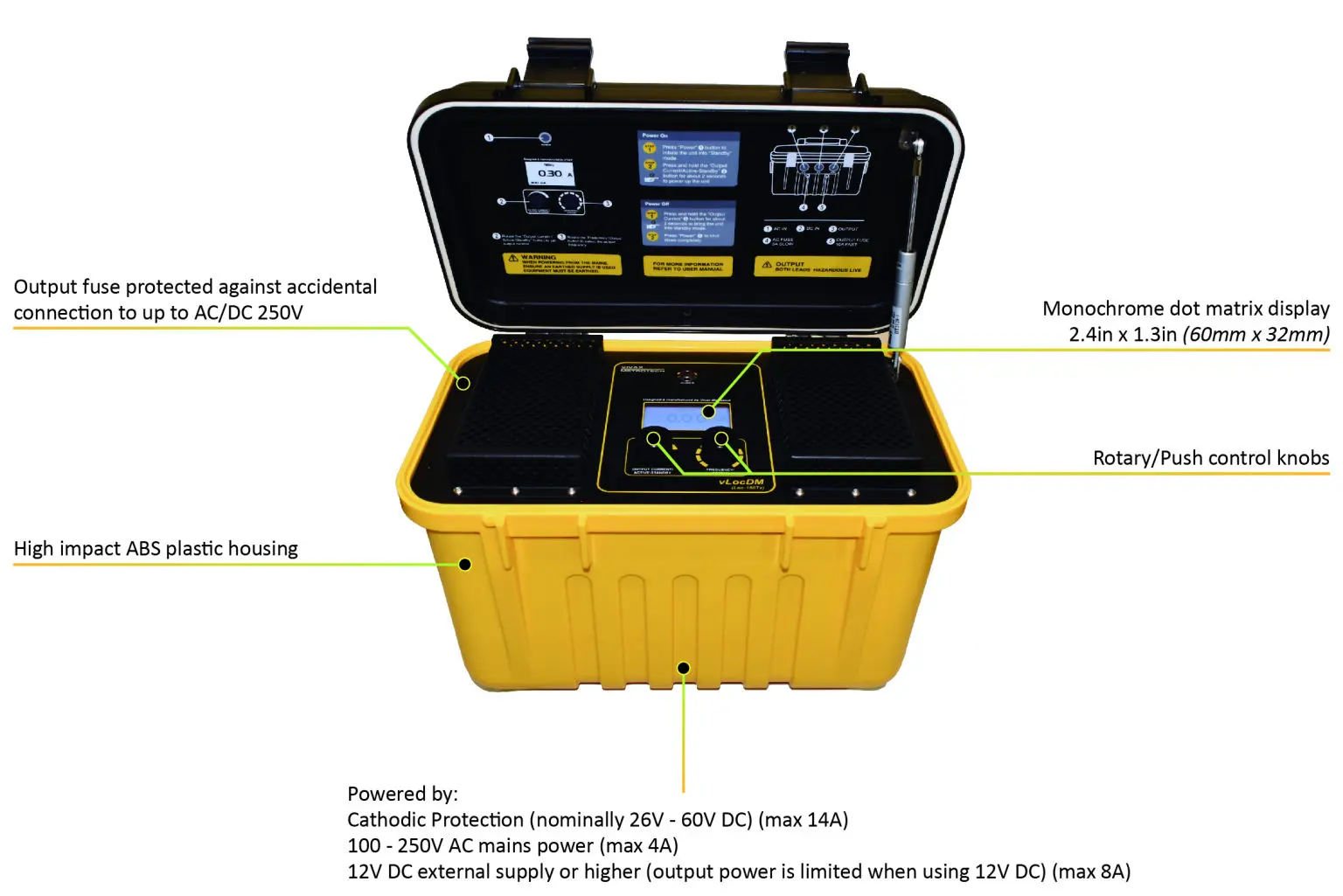

Loc-150Tx DM 150-Watt Transmitter 🔍


* Powered by AC/DC external power source
* Over voltage, power and temperature alarms
* High-impact ABS plastic housing
* Identify the location of coating defects and faulty insulation joints
* Can also operate as a long-line pipeline locator

Mobirise
Direct Connection Lead with Standard Clips


Ground Extension Spool

Mobirise

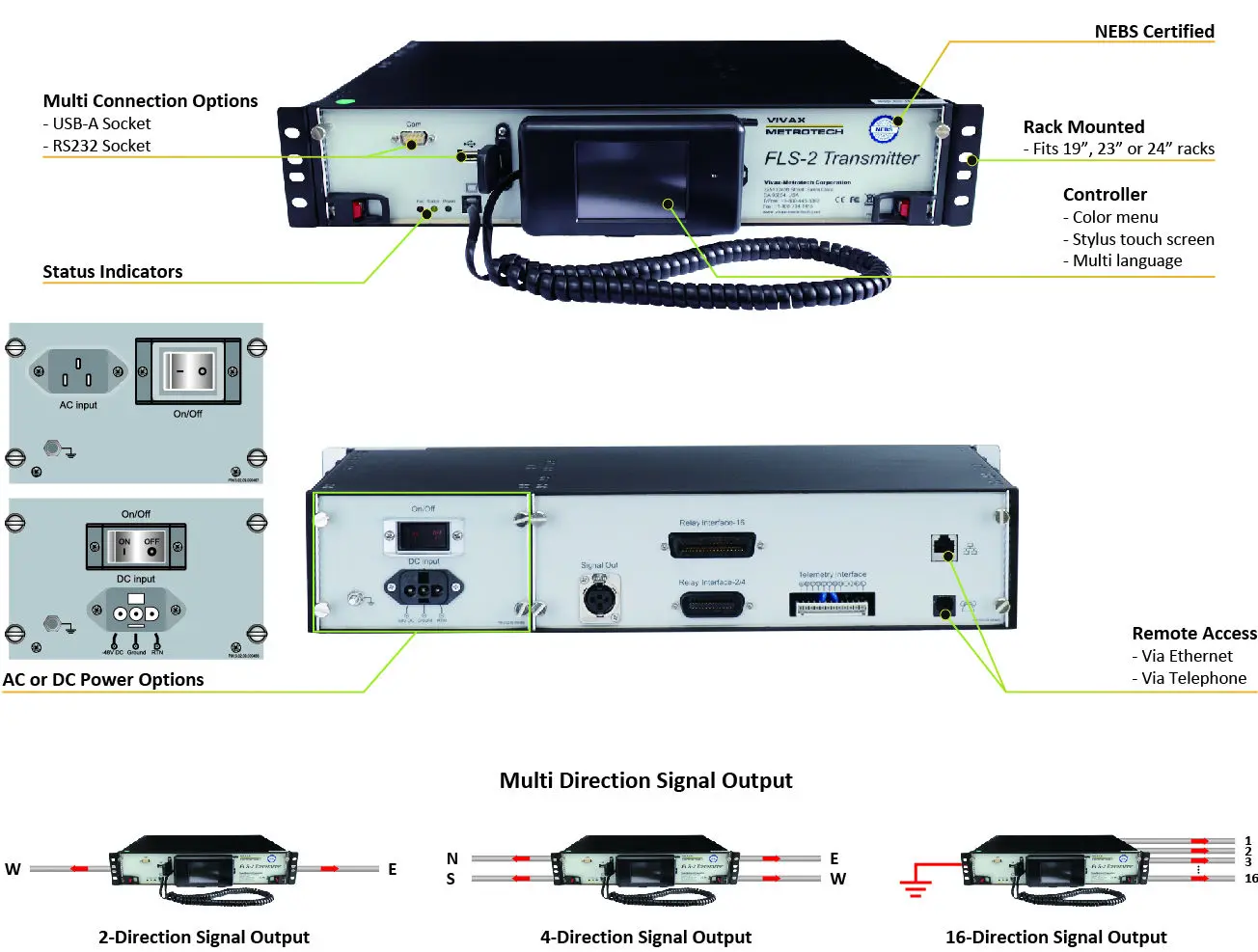

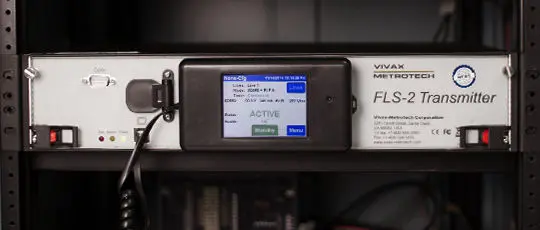

FLS-2 50-Watt Rack Mount Transmitter

Fiber optic cables are a critical part of modern life. From the vast amount of data that they carry (supporting Global Business) to the individual internet users and, more importantly, emergency services, the FLS system is at the heart of damage prevention for fiber optic cables.

The FLS-2 is a high-performance long-distance fiber optic cable locating and monitoring transmitter. As a central office or regen rack-mounted system, the FLS-2 offers a full 50-watts of output. The FLS-2 can be used for long-haul fiber lines and metropolitan loop networks. All features may be accessed remotely or locally with the hand-held touch screen.

FLS-2 50-Watt Rack Mount Transmitter 🔍


* Remote access by phone line-telephone network or Ethernet access via IP address
* Configurable two, four, or sixteen direction multiplexing
* Touch LCD interface
* Standard nineteen-inch rack mounting
* ELF output
* AC/DC power source
